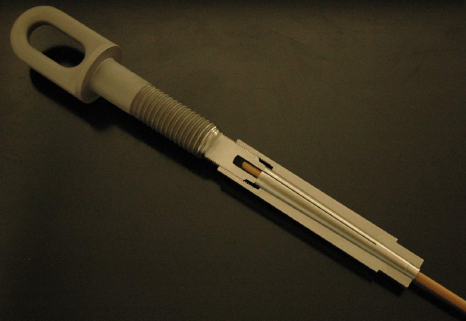

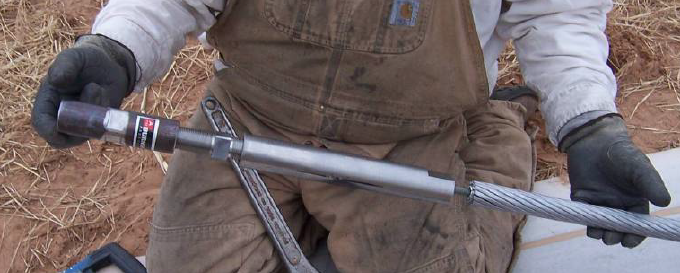

Connecting the Conductor
Connector Testing

Meets 95% RBS ANSI C119.4, Class 1

Mechanical Pullout with Combined

Testing

• 77% RBS Sustained Load, 20°C,

168 hrs

• High Ampacity 200°C, 20% RBS,

168 hrs

• 100 Million Cycles – Aeolian

Vibration, IEEE 1138-1994

• ACCC has higher rated tensile strength compared with conductors of equivalent diameter

• ACCC has higher ampacity (higher aluminum cross-sectional area – leads to lower ultimate temperatures) compared with conductors of equivalent diameter

• ACCC has a composite core (epoxy, glass fibers and carbon fibers)

• ACCC has annealed outer aluminum strands
